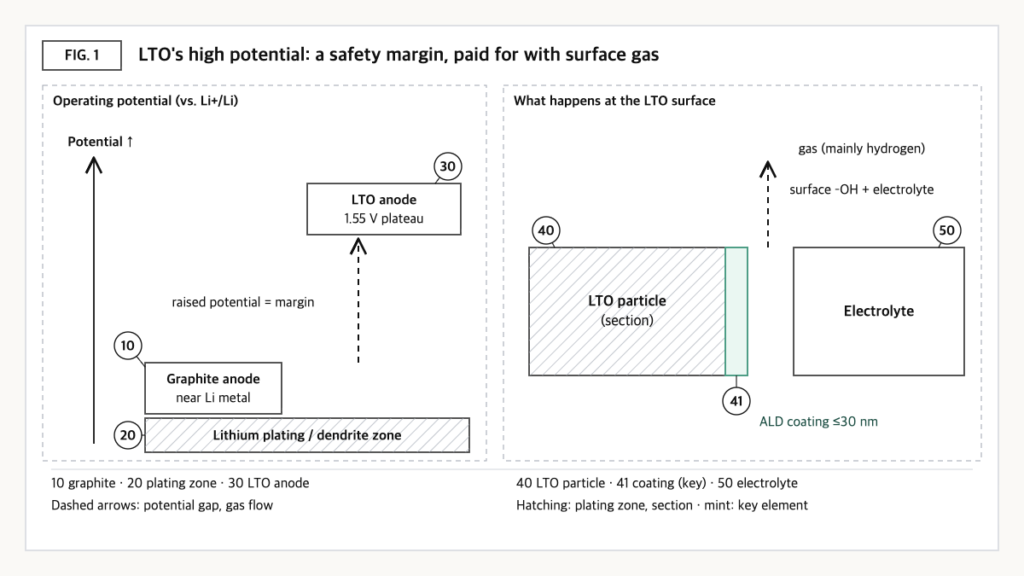

LTO avoids lithium plating with a high 1.55 V operating potential but takes on lower capacity and gas generation. We read the basis for its life, fast charging and low-temperature use alongside GM’s LTO coating patent.

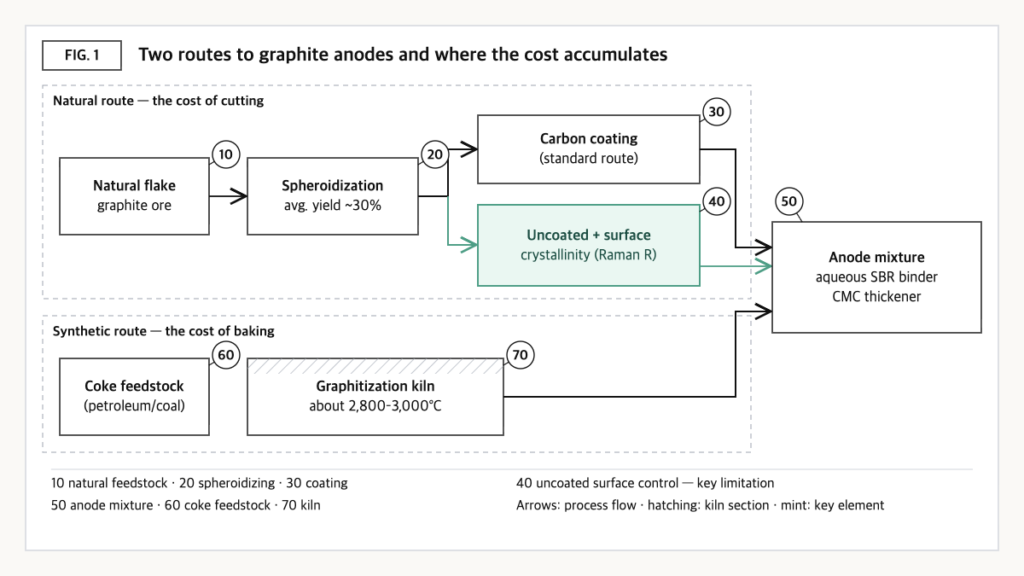

Natural graphite accumulates cost in spheroidization yield, synthetic graphite in graphitization power and carbon. We read the process and scope of rights through US9853289B2, which claims uncoated natural graphite.

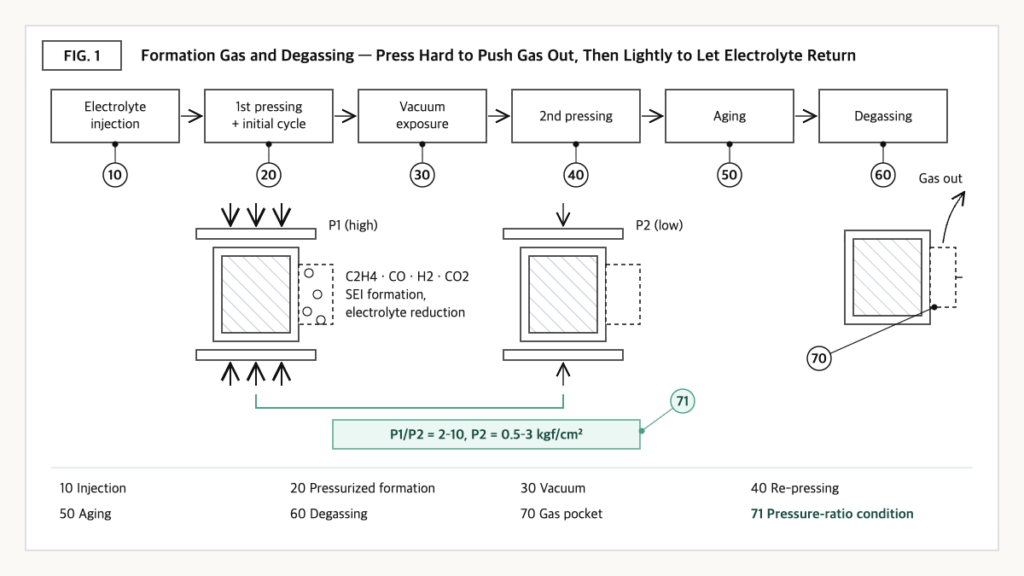

Over 70% of formation gas is ethylene, and gas escapes more slowly from larger cells. Read with LG Energy Solution’s US12456749B2, which claims the degassing pressure ratio.

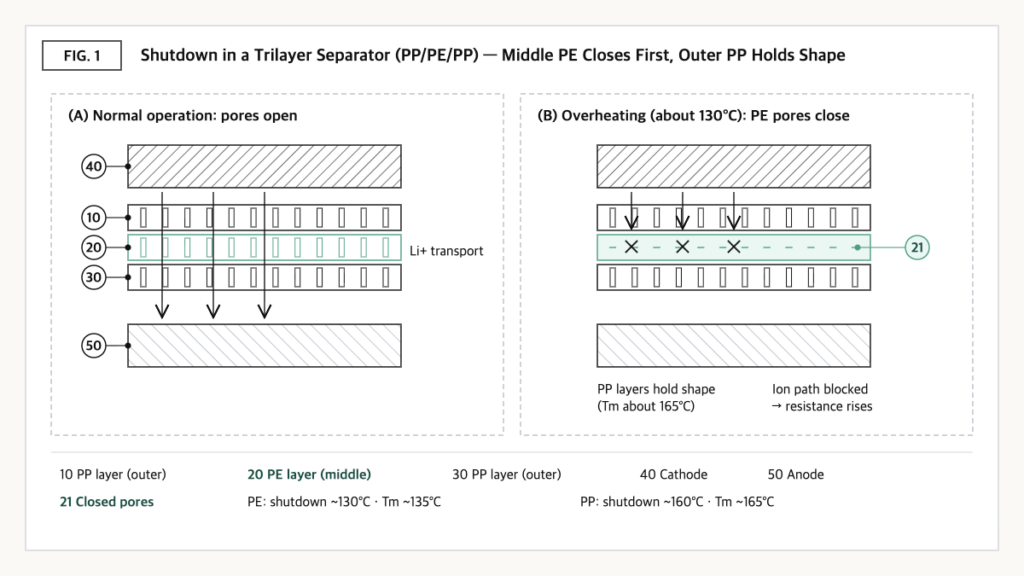

A separator base film is a design of when pores close and how long shape holds. Wet PE vs. dry PP, read with Celgard’s trilayer separator patent (US5691077A).

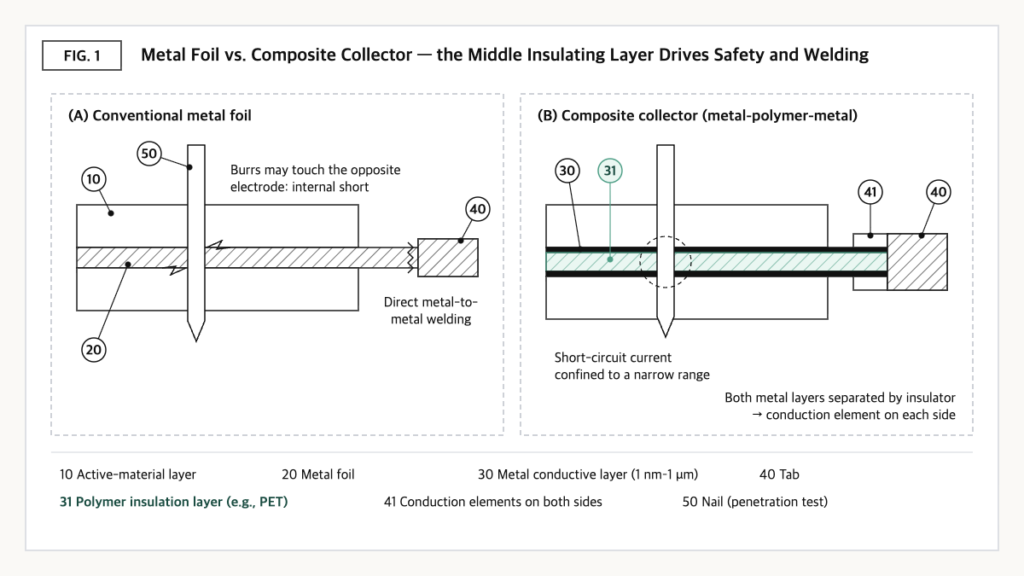

Composite current collectors with metal on both sides of PET film are lighter and fare better under nail penetration, but are harder to weld. Read via CATL’s US11539050B2 and US11233244B2.

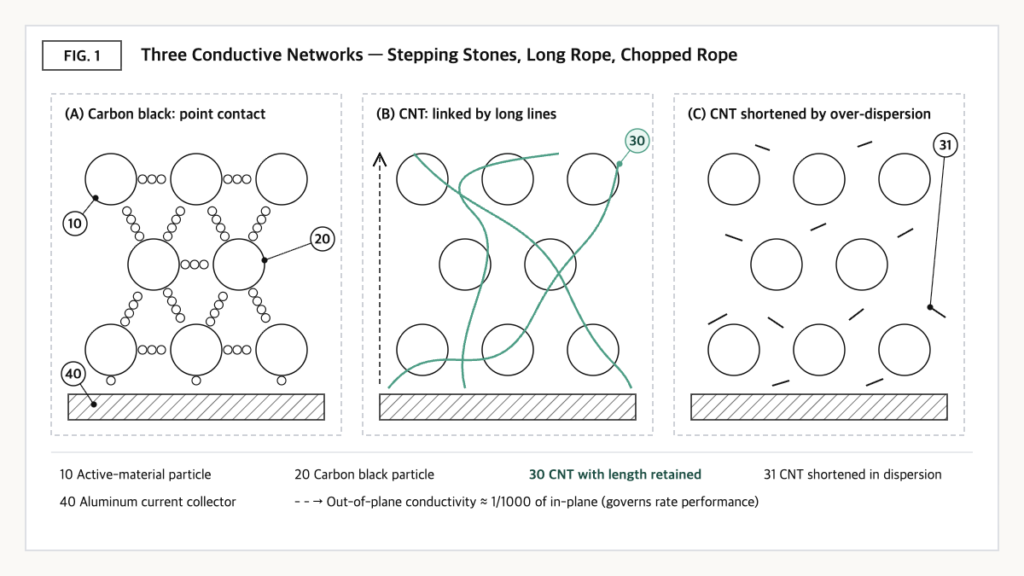

CNTs can clear the out-of-plane conductivity baseline at under 1 wt%, but lose their edge if shortened in dispersion. Read with LG Chem’s US10686185B2.

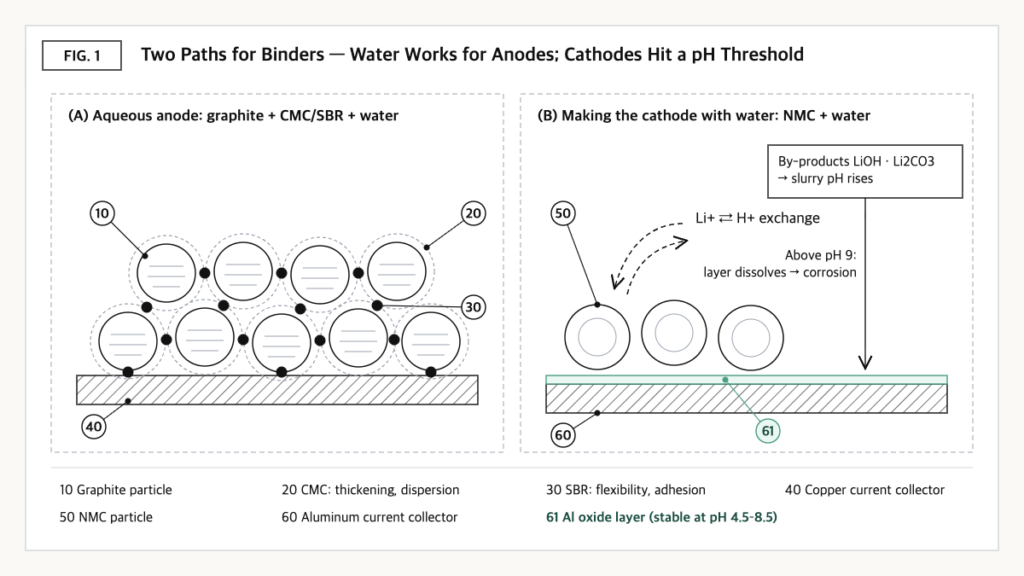

Why anodes use water-soluble CMC/SBR while cathodes use PVDF in NMP, read through the pH threshold and Nippon Paper’s CMC patent (US9240583B2).

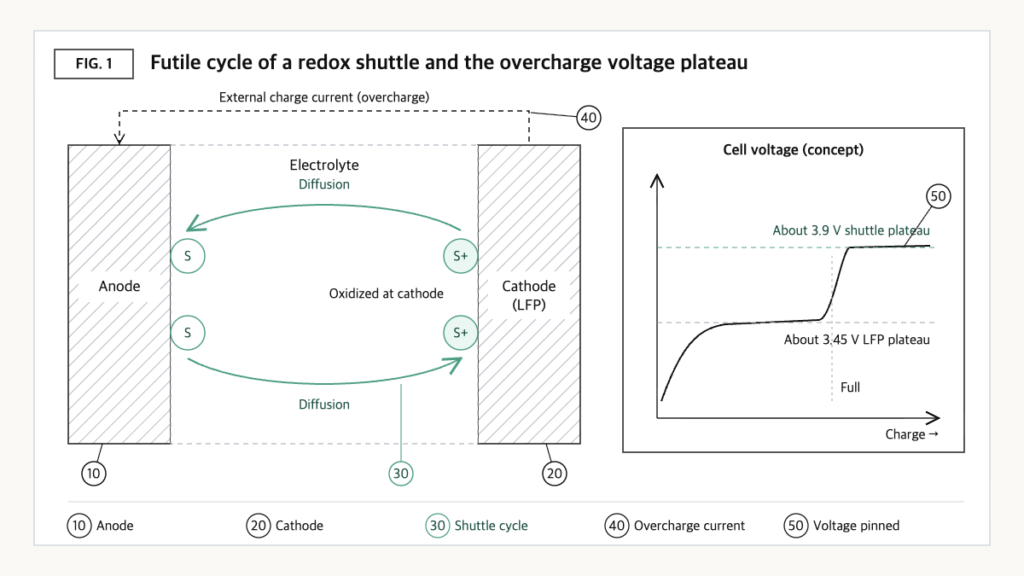

A redox shuttle circulates current arriving after full charge and pins the voltage. We cover its match with LFP, the solubility challenge, and the boundaries of the 3M and Argonne patents.

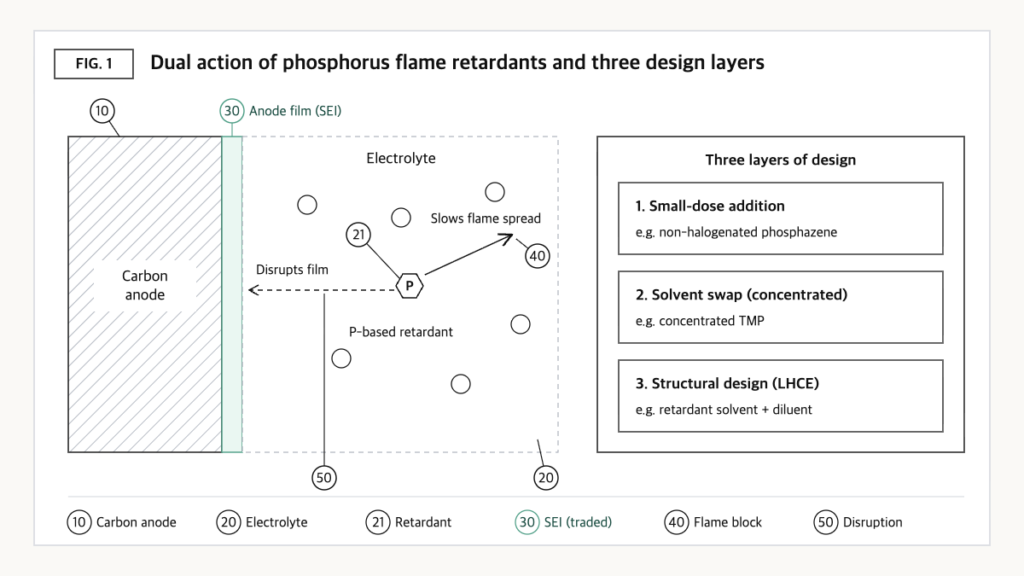

Phosphorus flame retardants make electrolytes burn less but weaken the anode film. We compare small-dose, solvent-swap, and structural routes, and read the cyclophosphazene patent US6455200B1.
High-concentration electrolytes stabilize interfaces by changing solvation structure but are costly and viscous. We explain how LHCE solves this with a diluent and where the PNNL patent US10367232B2 draws its line.
